Uncoiler JK

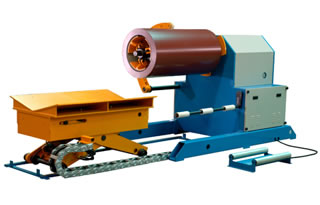

Our uncoiler is suitable for the uncoiling and conveying of thin metal sheets. It primarily consists of the main machine, tension device, arm hold down device, ultrasonic control device, electric control system and independent hydraulic system. Our stacker is innovative in design, and has received 2 patents of utility model. Automatic material loading and hydraulic tensioning are available.

Thank you for visiting our website! Jinggong Science & Technology, as an uncoiler manufacturer and supplier with over 40 years of experience. We specialize in the production of construction material machinery such as sandwich panel machine, steel tile forming machine, and guardrail forming machine etc. Our products are ISO9000 and CE certified, and are sought after by customers in the USA, India, Pakistan, Bangladesh, Turkey, the Philippines, Singapore, and more. We look forward to serving you.

Technical Specifications for Uncoiler

No.	Item	Unit	Parameter	Remark
1	Uncoiling motor power	kW	2.2
2	Hydraulic station power	kW	3
3	Uncoiling speed	m/min	Less than 50
4	Suitable coil inside diameter	mm	φ508/φ610
5	Suitable coil width	mm	1000~1250
6	Suitable coil outside diameter	mm	Less than φ1300	In case of any contradictory, performance parameter is put in the first place.
7	Rated load capacity	t	Less than 6
8	Outline dimensions (LXWXH)	mm	2600×1400×1700
