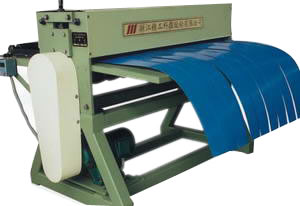

Slitter HF
Our slitter is the auxiliary equipment used for slitting materials. It is simple in structure and easy to adjust. Jinggong Science & Technology was founded in 1968 and is an experienced slitter manufacturer and supplier. In addition to slitter, we also offer other auxiliary equipment for the forming machine, like uncoiler, stacker, etc. Due to their good quality and reliability, our products have received ISO9000 and CE certification, and are well received in over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more.

Technical Specification for Slitter

No.	Item		Unit	Parameter	Remark
1	Suitable material	Type		Color plate, aluminum plate , galvanized plate
		Plate width	mm	≤1250
		Yield strength	Mpa	≤400
		Plate thickness	mm	0.3-1.0
2	Cutter material			Cr12, with heat treatment
3	Min. slitting width		mm	75
4	Driving mode			Chain drive
5	Total power		Kw	About 1.5
6	Outline dimensions (LXWXH)		m	0.8X1.8X1.7
