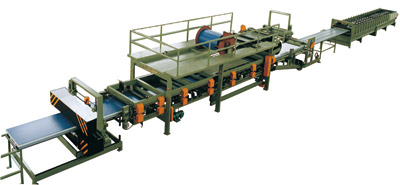

EPS Sandwich Panel Machine XBJ
Our EPS sandwich panel machine is the forming equipment that integrates the state-of-the-art mechanical, electrical, pneumatic and chemical technologies. This automatic production line is increasingly used in the construction of steel structure enclosures, cold storages and mobile buildings. We manufacture this sandwich panel machine in various specs and configurations to meet your specific requirements.

Main Components
Jinggong EPS sandwich panel machine is mainly composed of a decoiler, feeder, film covering system, roll forming machine, laminating system, spraying device, heater, cutting equipment, conveyor, electric control system, and pneumatic system.

Jinggong Science & Technology is an EPS sandwich panel machine manufacturer and supplier with over 40 years of experience. We provide a wide variety of high-quality construction material machinery, such as roll forming machine, steel deck forming machine, and guardrail forming machine etc. Our products have earned the ISO9000 and CE certificates, and are well received in America, Australia, Bulgaria, Argentina, Egypt, Syria, India, and more. Contact us today for more information!

Technical Specifications for EPS Sandwich Panel Machine

No.	Item		Unit	Parameter	Remark
1	Suitable panel materials	Type		Color coated steel plate, aluminium plate
		Plate strength	MPa	≤350
		Plate thickness	mm	0.4-0.8
		Plate width	Mm	≤1200	According to the shape of panel
		Coil inside diameter	mm	500, 600
		Coil weight	T	5
2	Suitable core materials			Rock wool, EPS	As per customers' requirement
3	Panel length		m	3-15
4	Panel width		mm	950-1200	According to the shape of panel
4	Panel thickness		mm	50-250
5	Working speed		m/min	1-3	Adjustable
6	Electric control system			Industrial computer PLC frequency control
7	Length of compound part		M	7.5	According to design requirement
8	Total power		Kw	About 42
9	Outline dimensions (LXWXH)		m	40X3.6X3.3
