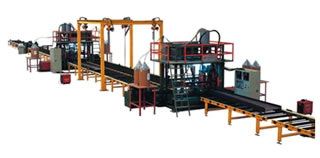

H Beam Welding Machine JH120
After fixing the position for the web and two wings of the H-profile steel, our H beam welding machine can automatically clamp, adjust, weld and transport the finished products. Our welding machine has received 2 patents of utility model, and is suitable for large-scale welding jobs, with lower labor intensity and higher efficiency (8000 ton/year for each shift). Beams welded by this production line are widely used in steel constructions.

Main Components
Jinggong H beam welding machine mainly consists of assembling machine, welding machine, turning machine, and conveyor.

Founded in 1968, Jinggong Science & Technology is an experienced H beam welding machine manufacturer and supplier in China. Our products have received the ISO9000 and CE certificates, and are exported to over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more. In addition to providing H beam welding machine, we also offer other steel structure machines, like box column welding machine, digital folder, slitting machine, and cut to length machine etc. If you have any queries, please contact us. Thank you!

Technical Specifications for H Beam Welding Machine

No.	Item		Unit	Parameter	Remark
1	Suitable section size of H- profile steel	Web plate width	mm	300-1200
		Web plate thickness	mm	3-8
		Wing plate width	mm	150-500
		Wing plate thickness	mm	5-16
2	Suitable length of workpiece		mm	5000-15000
3	Max. weight of workpiece		kg	4000
4	Inclination of variable cross section		degree	≤8
5	Total power		KVA	About 390(64KW+360KVA)
