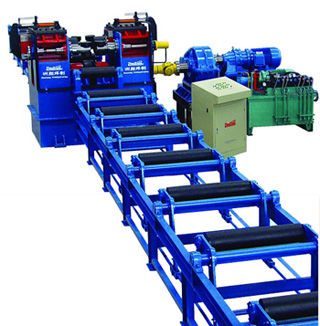

H-beam Flange Straightening Machine JJZ
Our H-beam flange straightening machine is mainly used for the angle distortion straightening of heavy H-beam. Adopting hydraulic straightening method, this machine has the features of strong straightening force, large straightening range, high working efficiency and good product quality. As a renowned manufacturer of H-beam flange straightening machine, we can design and manufacture different specification according to different requirement of the client.
| Item | Parameter | |
| Model | JJZ60B | JJZ80B |
| Flange width | 200-800 mm | 200-1000 mm |
| Web height | ≥350 mm | ≥450 mm |
| High pressure straightening force | 1500kn | 2800kn |
| Straightening material thickness | Q235≤80 mm Q345≤60 mm | Q234≤1000 mm Q345≤80 mm |
| Max. straightening speed | 5.5 m/min | 6.5 m/min |
| Total power | 26 KW | 27 KW |
