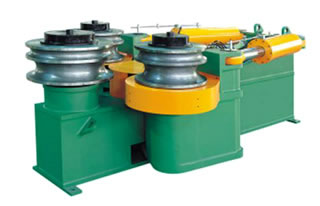

Bending Machine JXW500
Our bending machine is a piece of special equipment designed for section bar producers. It can be used to bend the section bar into round, arc or other shape of workpieces. This bender is widely used in a variety of industries, such as petroleum, chemical, hydroelectric power, shipbuilding, steel construction, and machinery manufacturing etc.
Main Components
Jinggong bending machine is mainly composed of welded type frame, forming roller, left and right roller brackets, hydraulic system, electric control system, and so on.

Jinggong Science & Technology, founded in 1968, is a China bending machine manufacturer and supplier. Besides bending machine, we also provide other kinds of steel structure machine such as shot blasting machine, slitting machine, and cut to length machine etc. Our products are ISO9000 and CE compliant. If you are interested in our product, please feel free to contact us.

Technical Specifications for Bending Machine

No.	Item		Unit	Parameter	Remark
1	Suitable material	Bending-resistance section modulus	cm3	270-2000
		Yield limit	MPa	245
2	Min. bending diameter	C50 channel steel outward bending	mm	φ4000
		C40 channel steel inward bending	mm	φ4000
		Φ426×16 steel tube	mm	φ18000
		Φ128×8 steel tube	mm	φ3500
		200×60 flat steel upright bending	mm	φ5000
		500×75 flat steel flat bending	mm	φ3500
3	Production speed		m/min	2-3
4	Outline dimensions(LXWXH)		mm	4880×3200×2000
5	Total weight		kg	约36000
6	Total power		KW	24
