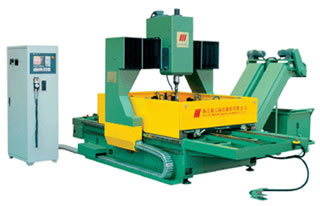

Drilling Machine JPZ160A
Our drilling machine is of CNC control system, X, Y axis AC servo control and Z axis hydraulic feeding, so it realizes quick positioning and drilling. The drill has been awarded 2 patents of utility model, and is widely used for drilling of yoke plate and plate-like parts in steel constructions.

Main Components
Jinggong drilling machine mainly consists of lathe bed, mobile gantry, drilling head, convertible workstation, electric control system, hydraulic system, cooling system, and chip cleaner.

Jinggong Science & Technology, a China drilling machine manufacturer and supplier, can provide a wide range of steel structure machines, such as shot blasting machine, bending machine, slitting machine, and cut to length machine etc. Our products are ISO9000 and CE certified, and are very popular in the USA, Cambodia, Algeria, Lebanon, Malaysia, and more. For more detailed product information, please browse our website or contact us directly.

Technical Specifications for Drilling Machine

No.	Item	Unit	Parameter	Remark
1	Max. processing thickness of workpiece	mm	80
2	Max. processing size of workpiece	mm	One cardinal point: 1650x1000
			Two cardinal points: 1000x825
			Four cardinal points:825x500
3	Max. drilling diameter	mm	Ф50
4	Spindle speed	r/min	130-400, stepless speed regulation
5	Max. travel of spindle	mm	180 (Cylinder feeding)
6	No. of worktable grip cylinder		12
7	Travelling speed of X, Y axle	m/min	12
8	Total power	kw	About 12
