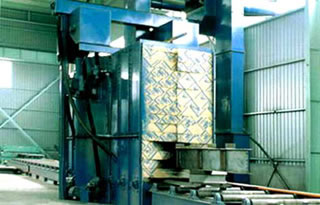

Shot Blasting Machine HP
Our shot blasting machine is the pretreatment equipment for cleaning welded structures, H steel and shaped steel. It is mainly used to perform the function of shot blasting towards the surface of raw steel material, which can remove rusty scale, welding slag and roll scale on the surface, thus obtaining uniform metal luster. The shot blasting machine can not only improve the finishing quality and corrosion resistance of the steel plate, but also reduce labor intensity and environment pollution.

Founded in 1968, Jinggong Science & Technology is an experienced shot blasting machine manufacturer and supplier in China. In addition to shot blasting machine, we also offer other steel structure machines, like box column welding machine, digital folder, slitting machine, and cut to length machine etc. Our products have received the ISO9000 and CE certificates, and are exported to over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more. If you have any queries, please contact us.

Technical Specifications for Shot Blasting Machine

No.	Item		Unit	Parameter	Remark
1	Suitable material	Applicable material		Steel structural parts, profiled bar
		Material size (LXWXH)	mm	15000*1000*1600
2	8 HPT300 impeller heads	Power	kw	18.5 *8
		Shotblasting capacity	kg/ min	220
3	Workpiece delivery	Working speed	m /min	0.8-4
		Power	kw	4*2
4	Conveying capacity of shot circulatory system		t/h	100
5	Dedusting system	Filtering area	m2	250
		Dedusting air flow	m3/h	20000
6	Shot material	Cast steel shot	mm	φ1.6-φ2
		Steel wire head	mm	φ1.2-φ1.5
