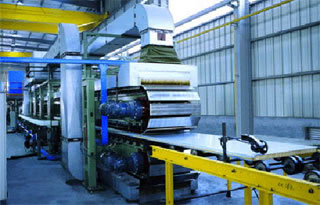

PU Sandwich Panel Machine JF
Our PU sandwich panel machine is the forming equipment that integrates advanced mechanical, chemical, electrical, hydraulic, and pneumatic technologies. It has earned five patents of utility model. Due to its high efficiency and simple operation, this forming machine is widely used in the construction of steel structure enclosures, cold storages, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture PU sandwich panel lines in different specs, models and configurations.

Main Components
Jinggong PU sandwich panel machine mainly consists of an uncoiler, film covering system, roll forming machine, preheating oven, polyurethane foaming system, double belt system, cutting device, cooling system, stacker, conveyor, packing system, electric control system, hydraulic system, and pneumatic system.

Founded in 1968, Jinggong Science & Technology is an experienced PU sandwich panel machine manufacturer and supplier in China. Our products have received the ISO9000 and CE certificates. They are exported to over 60 countries such as the USA, Germany, Canada, Russia, Mexico, Australia, and more. In addition to producing PU sandwich panel machines, we offer other machinery such as roll forming machine, steel deck forming machine, and purlin forming machine, etc. If you have any queries, please contact us. Thanks!

Technical Specifications for PU Sandwich Panel Machine

No.	Item		Unit	Parameter	Remark
1	Suitable panel materials	Type		Color coated steel plate, aluminium plate, wadding	According to customers' requirement
		Plate strength	MPa	≤350
		Plate Thickness	mm	0.4-0.8
		Plate width	mm	≤1250(max.)	According to the shape of panel
		Coil inside diameter	mm	500, 600
		Coil weight	T	5, 8 or 10	Optional
2	Suitable core materials			Rock wool, polyurethane, PIR	As per customers' requirement
3	Panel length		m	3-15
4	Panel width		mm	≤1050	According to the shape of panel
4	Panel thickness		mm	≤200	According to the shape of panel
5	Working speed		m/min	3-7 (adjustable)	Adjustable
6	Working pressure for foaming		bar	150-200
7	Double belt length		M	21	According to design requirement
8	Electric control system			Industrial computer PLC frequency control
9	Total power		Kw	About 300
10	Outline dimensions (LXWXH)		m	110X15X5
