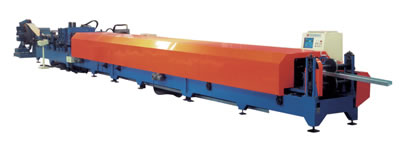

Auto Change Purline Machine
Our C Z purline machine has many automatic functions, such as auto purline change, specification adjustment, cutting to length, punching, cutting etc. It has been awarded many patents of utility model, and is widely used in steel structure buildings.

Main Components
Jinggong auto change purline machine mainly consists of hydraulic decoiler, leveling system, punching equipment, cutting equipment, roll former, material supporter, hydraulic system and automatic control system.

Established in 1968, Jinggong Science & Technology is a professional auto change purline machine manufacturer and supplier in China. We have been ISO 9000 certified and our products have received the CE certificate. In addition to purline machine, we also provide other construction materials machinery, such as roll forming machine, steel tile forming machine, and guardrail forming machine etc. Thank you for visiting our website! If you have any queries, please feel free to contact us.

Technical Specifications for Auto Change Purline Machine

No.	Item		Unit	Parameter	Remark
1	Suitable material	Type		Ordinary cold, hot rolled plate, galvanized plate
		Plate strength	MPa	≤350
		Plate thickness	mm	1.6-3.2
		Coil inside material	mm	500, 600
		Coil weight	T	5
2	Production spec		mm	100-320
3	Working speed		m/min	25
4	Roller material			D2, with quenching treatment
5	Driving mode			External chain drive
6	Operating system			Windows2000
7	Motor power		Kw	About 65
8	Electric control system			Industrial computer PLC frequency control
9	Outline dimensions (LXWXH)		m	30X2X1.7
