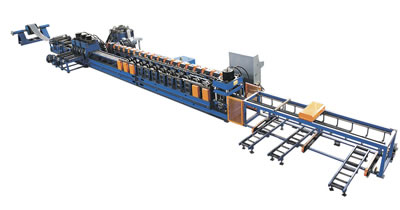

Guardrail Forming Machine HL-310
Our automatic guardrail forming machine integrates cold bending, cold stamping, auto stacking, and auto control technologies. The hot rolled steel strip is leveled and punched by the machine then roll formed and cut into highway guardrail. High production efficiency, high level of automation and low labor intensity are the main features of this machine.

Main Components
Jinggong guardrail forming machine is made up of a decoiler, leveling system, trimming rewinding system, cutting equipment, punching system, roll forming system, shearing device, automatic stacker, electric control system, hydraulic system, and automatic control system.

Founded in 1968, Jinggong Science & Technology is a China guardrail forming machine manufacturer and supplier. We can not only provide guardrail forming equipment, but also offer many other kinds of construction materials machinery such as sandwich panel machine, purlin forming machine, and roll forming machine etc. Our products are ISO9000 and CE compliant. If you are interested in our product, please feel free to contact us.

Technical Specifications for Guardrail Forming Machine

No.	Item		Unit	Parameter	Remark
1	Suitable material	Type		Hot rolled plate, galvanized plate
		Plate strength	MPa	≤350
		Plate thickness	mm	3-4
		Coil inside diameter	mm	500, 600
		Coil weight	T	10
2	Working speed		m/min	≥20
3	Roller material			D2 quenching treatment
4	Driving mode			Gearbox drive
5	Console mode			Touch screen+ button
6	Total power		Kw	About 90
7	Electric control system			Industrial computer PLC frequency control
8	Outline dimensions (LXWXH)		m	30X4X1.7
