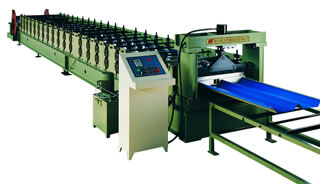

Roll Forming Machine HV
This type of roll forming machine line includes various kinds of roof panel forming machines, wall panel forming machines, and lining plate forming machines etc. It has received 3 patents of utility model and is widely used in steel construction enclosure. We can provide roll forming equipment in various profile shapes and configurations to satisfy your specific requirements.

Main Components
Jinggong roll forming machine comprises of a feeding machine, sheet guiding system, forming system, cutting equipment, product supporter, hydraulic system, and electric control system.

Jinggong Science & Technology has over 40 years of experience in the manufacture of roll forming machines. As a professional roll forming equipment manufacturer and supplier, we provide a wide range of construction material machinery, such as sandwich panel machine, steel deck forming machine, and downspout forming machine etc. Due to their high quality and reliability, our roll forming machines have been ISO9000 and CE certified and are exported to the USA, Germany, Canada, Russia, Mexico, Australia, among others. For more product information, please feel free to contact us. Thank you!

Technical Specifications for Roll Forming Machine

No.	Item		Unit	Parameter	Remark
1	Suitable materials	Type		Color plate, aluminium plate, galvanized plate	Depending on customer' requirement
		Thickness	mm	0.4-0.8 or 0.8-1.2
		Yield strength	Mpa	≤400	As per customers' material characteristic
		Width	mm	≤1500	According to different profile shape
		Coil weight	T	5 or 8	Optional
2	Working speed		m/min	≤15
3	Roller material			Hard chromium plated 45 steel
4	Roller driving mode			External chain drive
5	Electric control system			Industrial computer PLC frequency control
6	Console mode			Touch screen+ button
7	Total power		kW	6.2	As per technical requirement
8	Outline dimensions (LXWXH)		m	20X1.6X1.8
