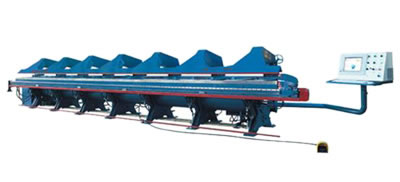

Digital Folder JZW
Our digital folder is under CNC control, and can automatically perform various operations such as plate locating, clamping, folding, and slitting. This folding machine is a high-tech product that integrates advanced mechanical, electrical, and hydraulic technologies. It is suitable for use in steel constructions, and also can be used for plate metal folding operations in other industries.

Main Components
Jinggong digital folder mainly consists of stop gauge, upper and lower clamps, and panel turnover mechanism etc.

Founded in 1968, Jinggong Science & Technology is a professional digital folder manufacturer and supplier in China. With our vast experience and highly trained staff, we now provide a wide range of steel structure machines, such as shot blasting machine, bending machine, slitting machine, and cut to length machine etc. Due to their high quality and reliability, our products have been ISO9000 and CE certified and are exported to the USA, Germany, Canada, Russia, Mexico, Australia, among others. For more product information, please feel free to contact us. Thanks!

Technical Specifications for Digital Folder

No.	Item		Unit	Parameter					Remark
				JZW650		JZW800		JZW1000
1	Max. folding length		mm	6500		8000		10000
2	Throat depth		mm	800
3	Max. folding thickness	Steel plate	mm	1.5
		Soft aluminium plate	mm	2.0
		Stainless steel	mm	1.0
4	Max. slitting thickness	Steel plate	mm	1.5
		Soft aluminium plate	mm	2.0
		Stainless steel	mm	1.0
5	Max. folding angle		degree	125
6	Slitting speed		m/min	40
7	Total power		KW	12
8	Total weight		Kg	4500	5400		6500
