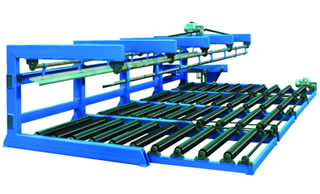

Stacker HMD
Our stacker is the auxiliary equipment for the steel deck forming machine, glazed tile forming machine, and steel tile forming machine. It has a reasonable structure and easy operation for the reduction of labor intensity.

As a professional stacker manufacturer and supplier since 1968, we provide a wide range of construction materials machinery, such as sandwich panel machine, steel tile forming machine, and downspout forming machine etc. Due to their high quality and reliability, our roll forming machines have ISO9000 and CE certification. They are exported to the USA, Germany, Canada, Russia, Mexico, Australia, among others. For more product information, please feel free to contact us.

Technical Specifications for Stacker

No.	Item		Unit	Parameter	Remark
1	Suitable material	Type		All kinds of profiled steel sheet
		Weight	Kg/sheet	≤200
		Length	Mm	≤12000
		Width	mm	1200(max.)
2	Stacking height		mm	≤200
3	Driving mode			Motor or cylinder
4	Total power		Kw	About 1.5
5	Outline dimensions (LXWXH)		mm	5800X2000X1700 or 11800X2000X1700
